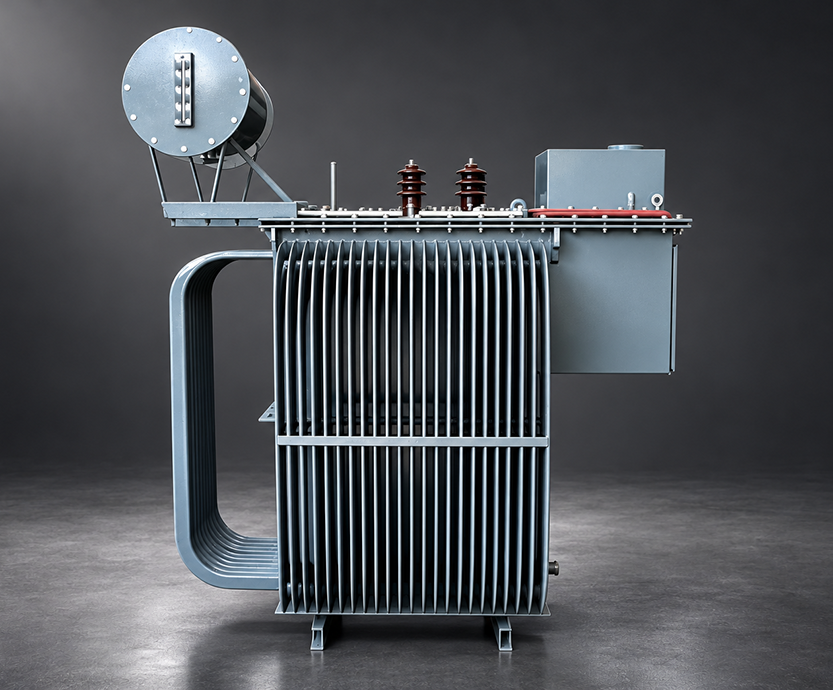

电渣炉变压器-Milky way Transformer Co.,Ltd.

Product features

safe and reliable

Oil free, with strong fire resistance, eliminating the risk of oil leakage; Capable of withstanding short-circuit current and overvoltage, and adapting to harsh environments.

Eco-design

Using environmentally friendly materials, low noise and no pollution, to assist in the construction of a green power grid.

Excellent heat dissipation performance

Efficient cooling system ensures that the equipment maintains low temperature during long-term operation, effectively extending the service life of the equipment.

Convenient operation and maintenance

Humanized design, simple operation, convenient and fast daily inspection and maintenance, significantly reducing operating costs.

Durable and sturdy structure

Durable shell design, impact resistance, corrosion resistance, able to adapt to various complex and harsh working environments.

Convenient and worry free operation and maintenance

Modular structure design, supporting quick disassembly and assembly, combined with intelligent monitoring system, making operation and maintenance work more worry free and effortless.

Technical parameters

型号	额定容量(kVA)	额定电压		联结组标号	产品重（kg）			轨距（mm）	外限尺寸（mm）
型号	额定容量(kVA)	一次(kV)	二次(V)	联结组标号	器身重	油重	总重	横向×纵向	长×宽×高
HZD-160/0.5	160	0.4	40	Ii0	500	270	1080	550×820	1120×1150×1150
HZD-250/0.5	250	0.4	45	Ii0	600	340	1260	550×820	1150×1210×1250
HZD-270/0.5	270	0.4	45-40-50	Ii0	650	340	1350	550×820	1150×1300×1300
HZD-315/0.5	315	0.4	45-50-55	Ii0	780	420	1720	550×820	1460×1380×1300
HZDZ-315/10	315	10	60-30 9级	Ii0	850	635	1940	660×820	2220×1580×2380
HZD-400/10	400	10	60-55-51-47-44	Ii0	1300	690	2960	820×820	2220×1570×2380
HZD-480/10	480	10	60-44 9级	Ii0	2100	1300	3800	820×1020	2300×1800×1980
HZDZ-500/10	500	10	70-50 9级	Ii0	1400	710	2900	660×1070	2200×2000×2070
HZD-600/10	600	10	60-42 9级	Ii0	3500	2100	6200	820×1020	2400×2200×1980
HZD-630/10	630	10	70-40 8级	Ii0	1450	975	3150	550×1070	2200×2050×2150
HZDZ-630/10	630	10	67-45 9级	Ii0	1470	975	3200	550×1070	1900×1750×2100
HZDZ-700/10	700	10	70-47 9级	Ii0	1700	990	3900	550×1070	1780×1800×2160
HZD-700/10	700	10	70-64-56-52-47	Ii0	1750	990	4000	820×1070	2100×1630×2600
HZDZ-700/6.3	700	6.3	70-47 9级	Ii0	1790	1000	4100	550×1070	1780×1800×2160
HZDZ-800/10	800	10	70-47 9级	Ii0	1800	1060	4200	550×1070	1780×1800×2160
HZDZ-800/10	800	10	87-60 9级	Ii0	1880	960	3860	660×1070	2400×2000×2200
HZD-900/10	900	10	70-47 11级	Ii0	3450	2060	6100	820×1020	2100×1900×2400
HZD-1000/10	1000	10	80-50 9级	Ii0	2020	1620	5350	660×1070	2470×2250×2350
HTZ-1118/6.3	1118	6.3	260-40 11级	YaT	2800	2300	7100	1070×1435	2800×2210×2280
HZDZ-1400/6	1400	6	70-45 9级	Ii0	2400	1400	5000	660×1070	2160×2060×2700
HTZ-1474/6.3	1474	6.3	275-60 11级	YaT	3200	2450	7650	1070×1430	2950×2210×2430
HZDSPZ-1000/10	1000	10	80-50 17级	Ii0	3600	2150	6300	820×1020	2400×1700×2800
HZDSPZ-1000/10	1000	10	82-45 19级	Ii0	3300	2000	5900	820×1020	2500×1800×2700
HZDSPZ-1000/10	1000	10	92-50 23级	Ii0	3600	2200	6400	820×1020	2800×1800×2900
HZDSPZ-1600/6	1600	6	80-30 24级	Ii0	4000	2800	9800	820×1070	3800×2050×2850
HZDSPZ-1620/10	1620	10	80-45 17级	Ii0	5500	3300	9800	1070×1070	3100×1700×3400
HZDSP-1620/10	1620	10	90-55 8级	Ii0	2900	2010	7050	660×1070	2500×1750×2850
HZDSPZ-1620/10	1620	10	95-55 27级	Ii0	3050	4000	10500	820×1070	3370×1920×3500
HZDSPZ-2200/10	2200	10	125-52 27级	Ii0	4060	5100	13200	820×1505	3400×1980×3600
HZDSPZ-2400/10	2400	10	96-56 18级	Ii0	4760	5100	13800	820×1505	3400×2050×3600
HZDSPZ-3150/35	3150	35	120-70 27级	Ii0	5700	4300	14800	1070×1505	3700×2400×4500
HZDSPZ-3400/10	3400	10	130-75 27级	Ii0	5080	5000	14200	1070×1505	3400×2180×3760
HZSSPZ-3000/10	3000	10	96-66 17级	Dyn11	9200	4500	17200	1435×1435	4300×2700×3500
HZSSPZ-4200/10	4200	10	85-40 25级	Dyn11	10200	5100	19500	1435×1435	3800×2800×3200
